VSoL® Retaining Walls for roads and railways

VSoL® Retaining Wall

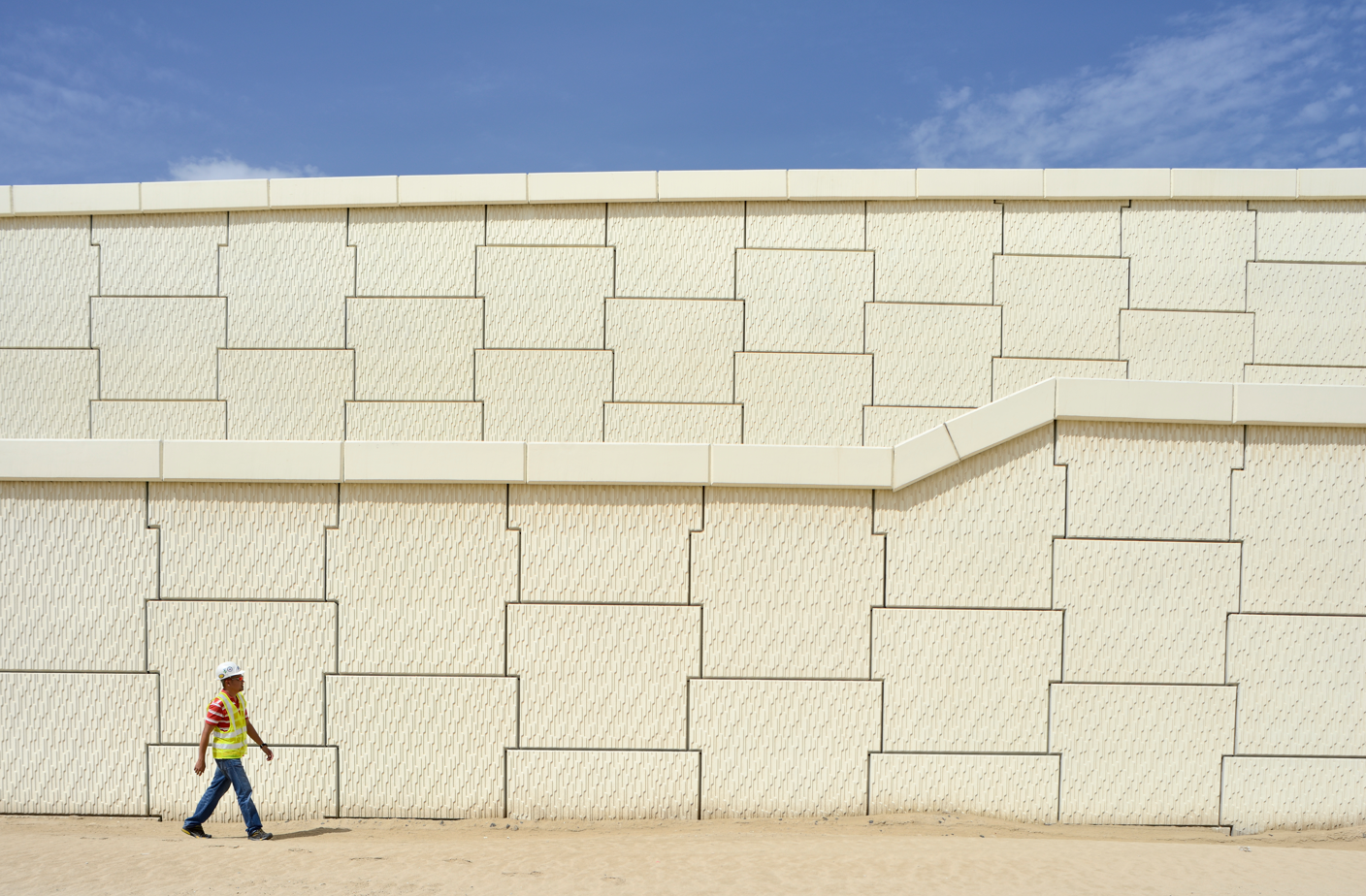

Mechanically stabilized earth (MSE) walls are widely used to retain embankments and support road and rail infrastructure. The VSoL® Retained-earth wall system, developed by VSL, combines precast concrete facing panels and galvanized steel soil reinforcements to deliver durable, modular, and cost-effective retaining solutions. The system is adaptable to a wide range of applications, including abutments, ramps, and cuttings, especially in constrained urban or mountainous environments.

Structural and performance benefits of VSoL®

VSoL® combines structural efficiency, durability, and design flexibility to deliver high-performance retaining wall systems for demanding infrastructure applications.

The system supports heavy dynamic loads from vehicles, rail traffic, and bridge abutments.

Precast panels and reinforcements enable fast-track installation and minimize on-site formwork.

Can be configured for straight, curved, stepped, or tiered geometries, including complex site conditions.

Galvanized steel reinforcements and high-performance facing panels provide extended service life, even in aggressive environments.

Panel finishes can be tailored to meet architectural or environmental integration requirements.

See more See less

VSL’s VSoL® Retained-earth Wall Services

VSL provides comprehensive services for VSoL® reinforced earth walls, from design through installation and maintenance, ensuring long-term structural performance and durability.

Design and Engineering

VSL performs full design services for VSoL® structures, including:
• Internal stability calculations and pullout resistance
• Global stability analysis under seismic and surcharge conditions
• Connection detailing and panel geometry optimization
Designs comply with international and local codes (e.g., AASHTO, EN 1997) and consider soil-structure interaction.

Supply and Installation

VSL supplies all system components:
• Precast concrete facing panels, manufactured under strict quality control
• High-adherence galvanized steel reinforcements, engineered to resist tensile and corrosion loads
• Connection hardware, including tie bars and bearing pads
Installation is managed by trained VSL crews, ensuring correct placement, compaction, and alignment.

Maintenance and Inspection Support

• Inspection guidelines provided to infrastructure owners
• Optional monitoring systems available for high-criticality walls
• VSL can provide periodic assessment and reinforcement replacement plans if required

Why choose VSL for your retaining walls

  • Proprietary technology

    VSoL® is VSL’s in-house engineered MSE system, deployed worldwide on major transportation projects.

  • Integrated project delivery

    From early-stage design to final installation, VSL provides complete technical and construction services.

  • Proven field performance

    VSoL® systems have been installed in over 30 countries across diverse geotechnical profiles.

  • Optimized logistics

    Modular precast design simplifies transport, storage, and handling on constrained job sites.

FAQ about VSoL® Retaining Wall

These are some of the most common questions we receive. Got another one? Reach out to us!

VSoL® walls can be designed for heights exceeding [placeholder height], depending on surcharge, soil conditions, and reinforcement length.

Yes. VSoL® is suitable for bridge abutments, including integral and semi-integral types, supporting bearings and approach slabs.

The wall design includes granular backfill and drainage layers. Vertical joints and base channels allow for water relief behind the facing.

See more See less

Looking to optimize your retaining wall solution?

Contact VSL for engineering support, project-specific design, and VSoL® system integration into your infrastructure.
